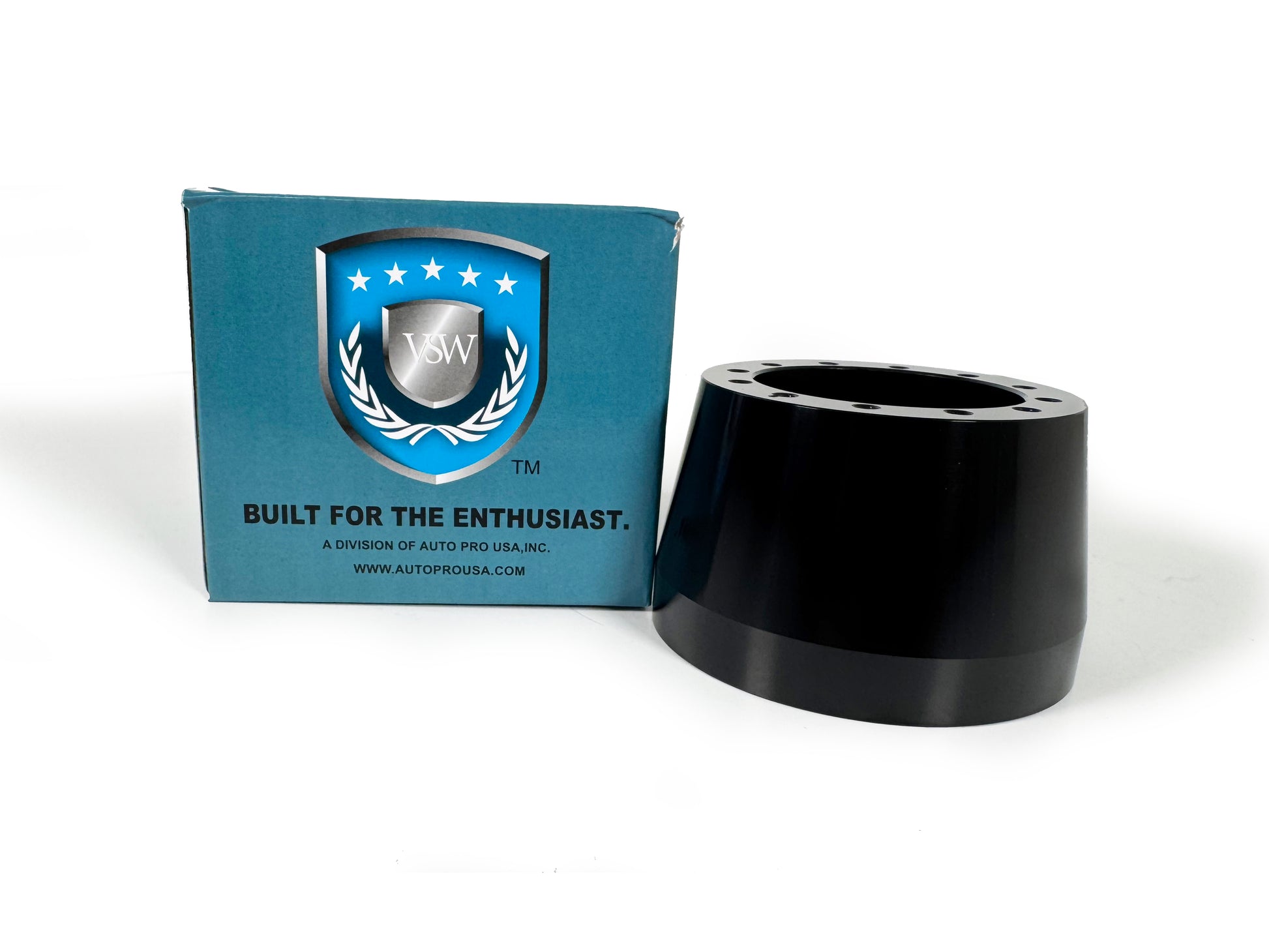

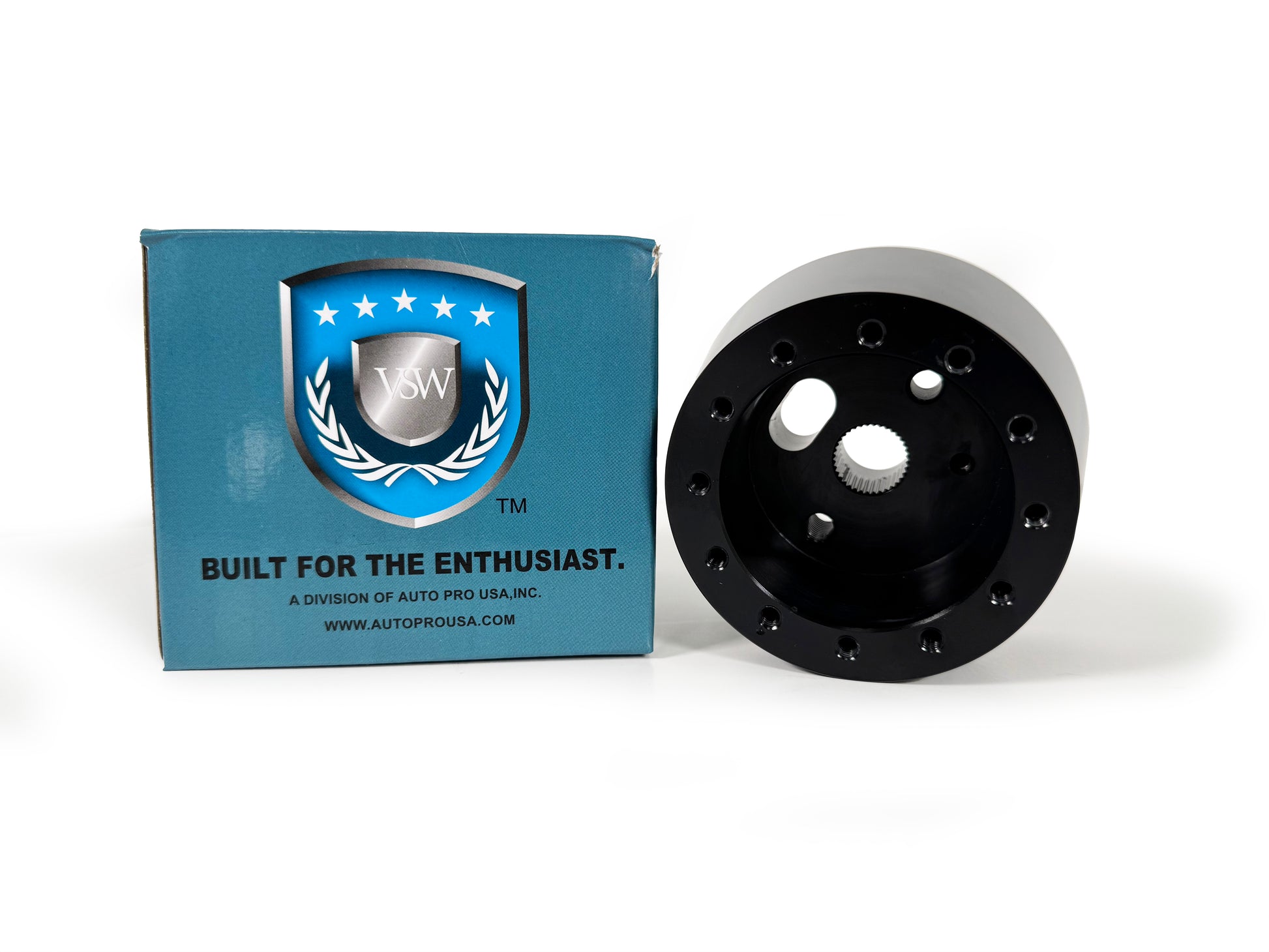

1969-94 GM Passenger & 1974-94 GM Truck | S6 Black Hub Adapter | STH1008BLK
1969-94 GM Passenger & 1974-94 GM Truck | S6 Black Hub Adapter | STH1008BLK

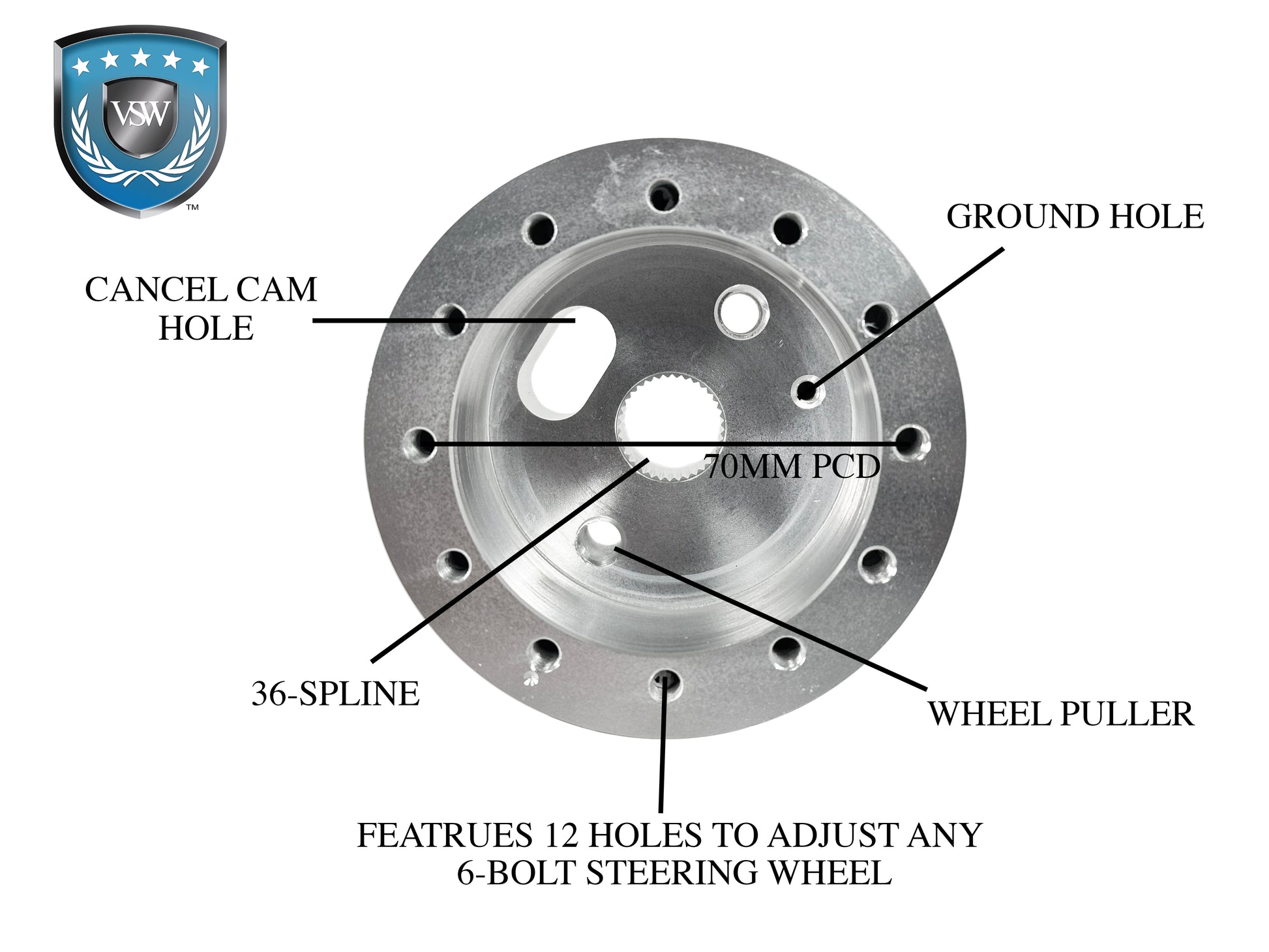

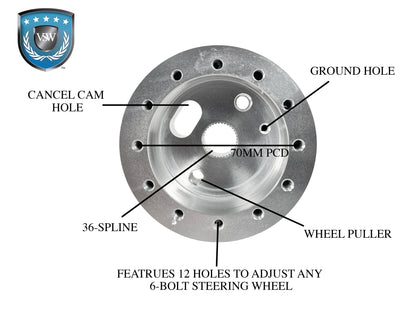

- 70mm PCD 6-Bolt Mounting Pattern
- Works with Tilt & Non-Tilt
- CNC machined to create a perfect fitting hub
- Made from 6061 Billet Aluminum, Anodized Black
- Height: 2.5 inches
- 36 Spline Count
- Use with VSW S6 Series horn Buttons (NOTE: Not compatible with VSW Horn "CAPS")

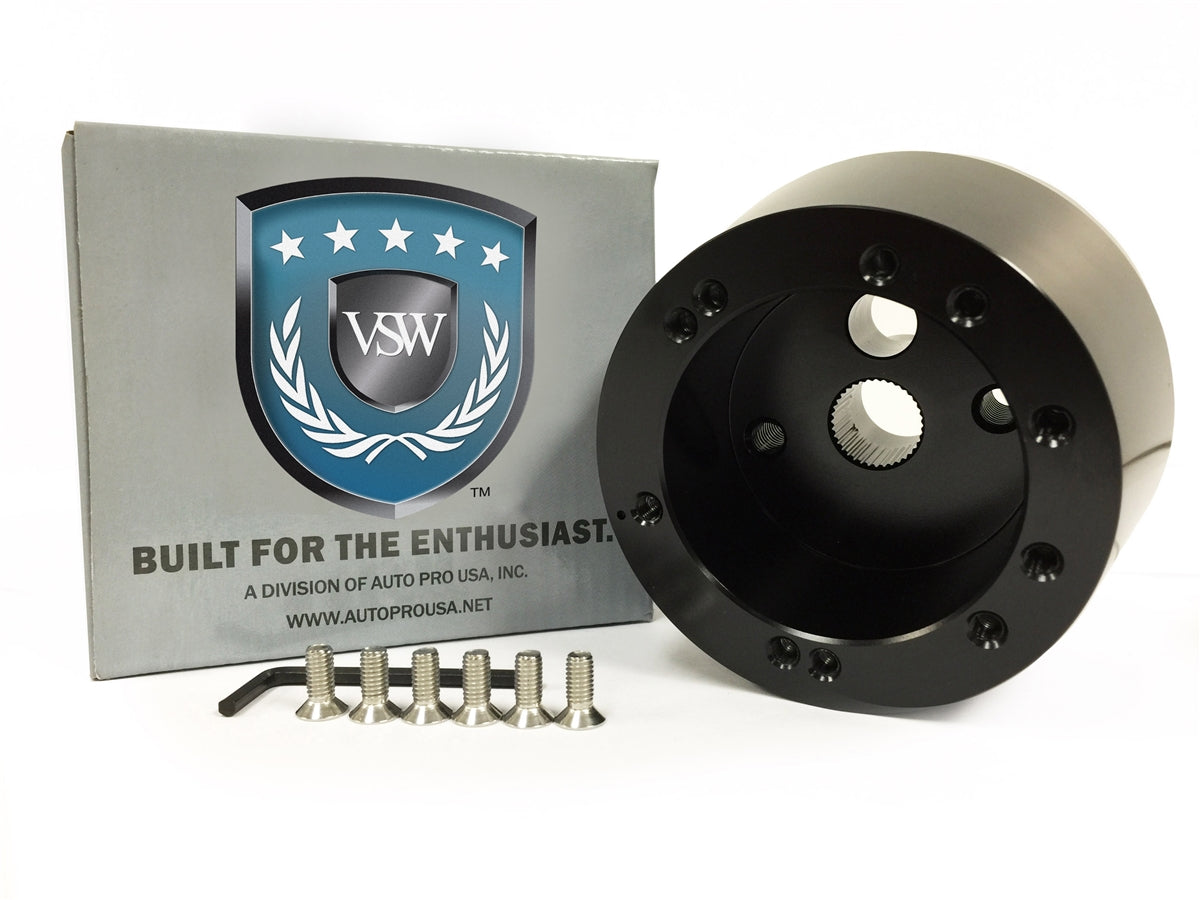

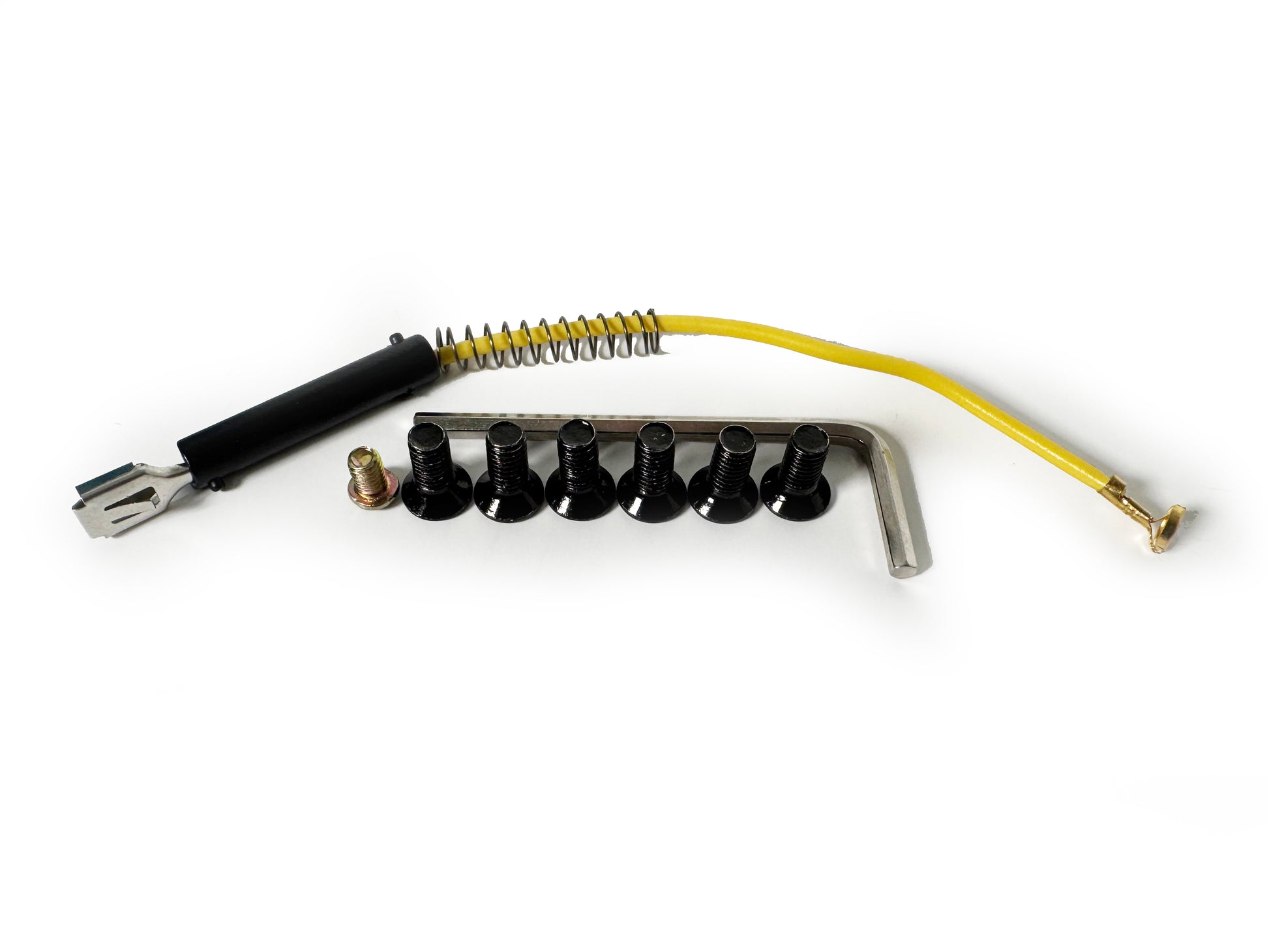

- Includes hardware set
- Will also fit most 6 bolt steering wheels in the market with a bolt diameter of 70mm PCD (Momo, Sparco, NRG NOTE: Rotator Plate may be needed)
Fitments:
- 1970-87 American Motors (excludes Alliance, Encore)
- 1969-96 GM Passenger (Includes 1990-96 C4 Corvette)
- 1974-94 GM Truck
- 1974-95 Jeep (Cherokee, Wagoneer, Pick-up)
- 1976-94 Jeep (CJ5, CJ6, CJ7, Wrangler, Scrambler, Commanche)
- 1978-81 Mopar, All Models (Tilt Columns Only)
- Ididit Universal Columns with GM Spline
NOTE: GM Passenger 1990 and up does not support airbag functions - Off road/track use only. Some modification may be needed
Excludes:
- 1970-87 American Motors Alliance & Encore
- 1969-89 Corvette, Sprint, Spectrum
- 1986-88 Chevy Nova
- 1988-88 Pontiac LeMans
Couldn't load pickup availability
Share

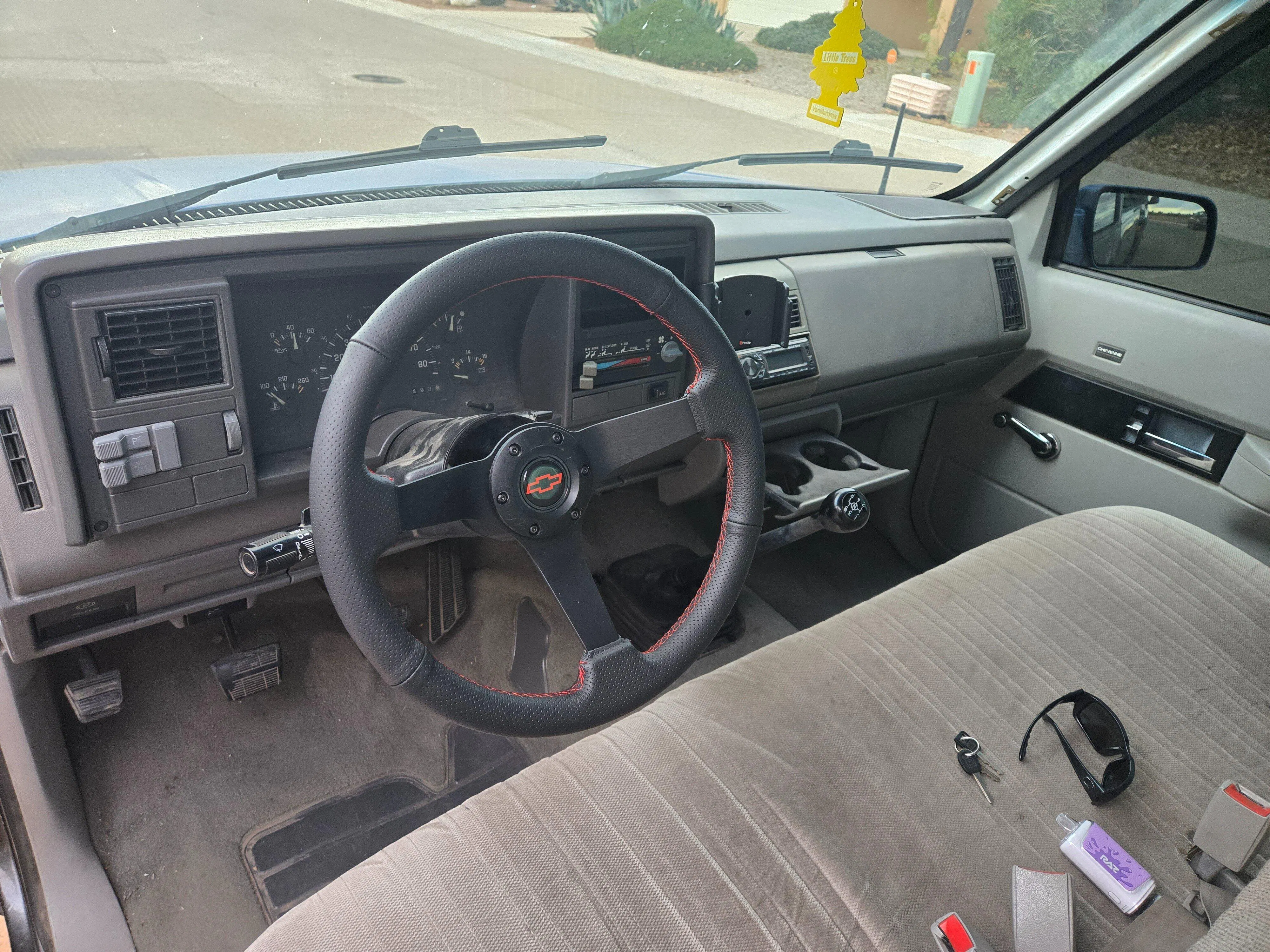

I absolutely love the steering wheel in my truck. The steering wheel itself is very well made and sturdy and with the red chevy bowtie emblem, it really brings it all together.
However, the small Allen head screws the hub came with were absolute junk. After putting them in once I had to take it back off to make an adjustment and every single one of those screws stripped. I went to home depot and got her head cap screws with the same thread pitch and everything worked well then.
Finally, my kit did not come with a single set of instructions. It was trial and error to figure out wire combinations to get the horn working. I eventually also found a set of instructions on someone else's website.
All in all, im happy with the steering wheel but somethings could have been better.
My concerns were fit and finish and the hub met my expectations and standards. VSW was kind enough to send additional photos before I purchased it to help me make my decision to go with VSW. That was nice.
Looks and feels great. The only problem was the connector had to be ground down where it connects to the column. But after that, no problems.
